Key Features
Nominal Input Voltage
120V
Input Connections
NEMA 5-15P
Maximum Input Current
15.0A

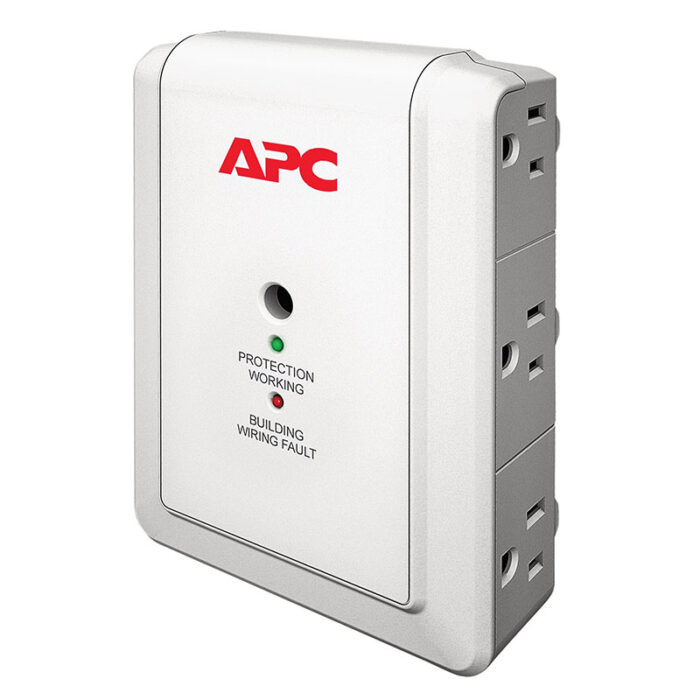

APC Essential SurgeArrest 6 Outlet Wall Mount, 120V
Basic Protection Against Power Surges for Computers and Electronics
Includes: User manual, Warranty card
- EMI and RFI noise filtering
Reduces line noise that can cause data loss and keyboard errors.
- Fail Safe Mode
Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC’s SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
- IEEE let-through rating and UL 1449 compliance
The ‘Institute of Electrical and Electronics Engineers’ (IEEE) Let-Through Voltage rating is based on a test that subjects a Surge Protector to a 6,000 volt spike. The rating equates to the amount of excess voltage that reaches connected equipment. The lower the number, the better the performance of the Surge Protector is. Underwriter’s Laboratory’s UL1449 surge protection safety standard uses these ratings to help users gauge performance. UL’s best Transient Voltage Surge Suppressor (TVSS) Let-Through Voltage rating is “300V”.
- Lightning and Surge Protection
When measured via ANSI/IEEE 587 Category ”A” and “B” tests, the suppression performance of the APC Smart-UPS is superior to virtually all separate surge suppressors.
SurgeArrest Essential Features & Benefits
Marketing features
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
Data-line Protection
Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.
Protection
Lightning and Surge Protection
To prevent damage to your equipment from electric power surges and spikes.
IEEE let-through ratings and regulatory agency compliance
APC surge protectors undergo stringent testing by IEEE, and are awarded “let-through ratings”, which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V to 500V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
Noise Filtering
Attenuates EMI/RFI line noise that can cause data errors and keyboard lockups, ensuring better performance of protected equipment.
Safety
Fail Safe Mode
Most other surge suppressors continue to let power through even after their circuits have been damaged, leaving your equipment exposed to future surges. APC’s SurgeArrest fail safe, which means that once the circuit of an APC SurgeArrest has been compromised the unit disconnects equipment from the power supply ensuring that no damaging surges reach your equipment.
Catastrophic Event Protection
SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.
Protection working indicator
SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.
Product Distribution
Anguilla, Netherlands Antilles, Aruba, Barbados, Bermuda, Bahamas, Belize, Canada, Colombia, Costa Rica, Dominican Republic, Ecuador, Guatemala, Guyana, Honduras, Haiti, Jamaica, Mexico, Nicaragua, Panama, Puerto Rico, El Salvador, Turks And Caicos Islands, Trinidad and Tobago, United States, Uruguay, U.S. Virgin Islands
Output
Number of Outlets
6.0
Receptacle Style
NEMA 5-15R
Input
Input frequency
50/60 Hz +/- 5 Hz Auto-sensing
Input Power
1200 Watts
Maximum Line Current
15A
Surge Protection and Filtering
Surge energy rating
1080Joules
ts_nm_surge_response
1ns
Peak Current Common Mode
72kAmps
Peak Current Normal Mode
60 per phasekAmps
Physical
Maximum Height
102MM, 10.2CM
Maximum Width
38MM, 3.8CM
Maximum Depth
140MM, 14.0CM
Net Weight
0.2KG
Shipping weight
0.23KG
Color
Beige
SCC Codes
10731304282737
Environmental
Operating Temperature
0 – 40 °C
Operating Relative Humidity
0 – 95 %
Operating Elevation
0 – 3048meters
Storage Temperature
-15 – 45 °C
Storage Elevation
0 – 15240meters
Conformance
Approvals
ETL
Equipment protection policy
Lifetime : $50000
Standard warranty
Lifetime
Sustainable Offer Status
RoHS
Compliant
