MidNiteSolar Combiner Box – MNPV3

Note: These combiner boxes do not come with breakers

Includes a 60 amp plus bus bar, 6 position PV negative bus bar and a 6-position ground bus bar. Breakers/fuse holders sold separately.

(For 150 VDC charge controllers and 600 VDC grid tie inverters)

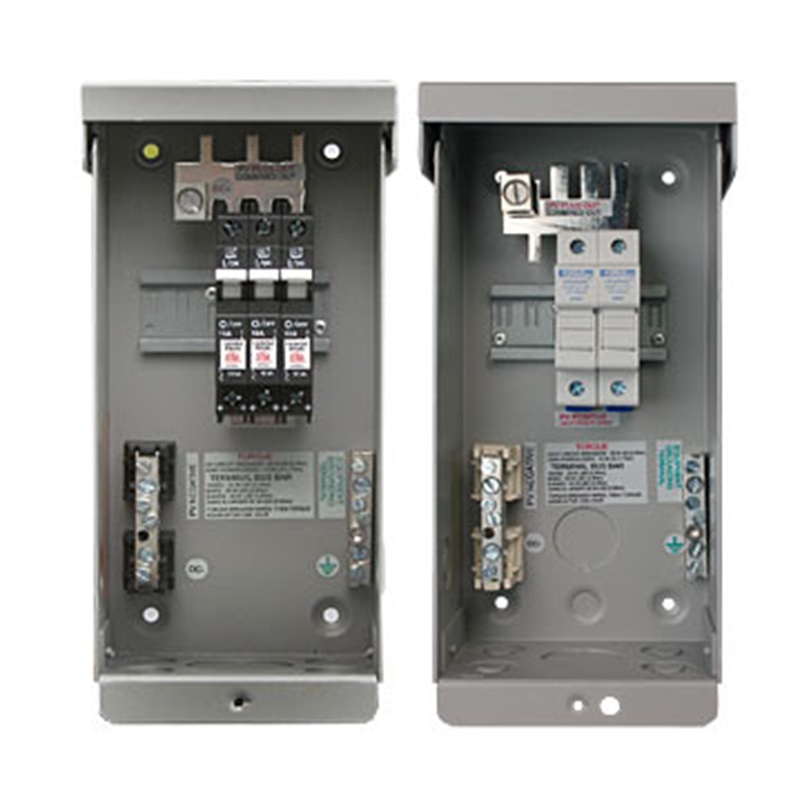

Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders.  With modifications to the deadfront 3 din rail fuse holders can be used. Includes a 60 amp plus bus bar, 6 position PV negative bus bar and a 6-position ground bus bar. Punch out tabs on the plastic deadfront make for a clean installation using circuit breakers. An included vsnap in adapter makes for a professional looking installation when installing fuse holders. A single 300VDC breaker from 7 to 50 amps may be installed as a disconnect (no combining busbar) . The enclosure may be mounted to a pole or wall indoors or out.

Midnite Solar
MNPV Combiner Boxes
MNPV3

ETL listed for the US and Canada up to 3 1/2 pitch

The MNPV3 features:

• Din rail to accommodate up to three 150 VDC breakers
• 6 position PV negative bus bar
• 6 position ground bus bar
• 60 Amp Plus bus bar
• Gray aluminum rainproof enclosure

Dimensions: 11″H x 5 “W x 4 “D
